User Defined Fields (UDF)

You can create your own fields in most Kompass modules: Organizations, Contacts, Projects, Proposal Items, Tasks, Invoices, Payments, Expenses, Time Off, Equipment, Suppliers and Employees. On a record's detail page the fields show in the Additional Information card, unless you place them somewhere else (see Placing fields on the page).

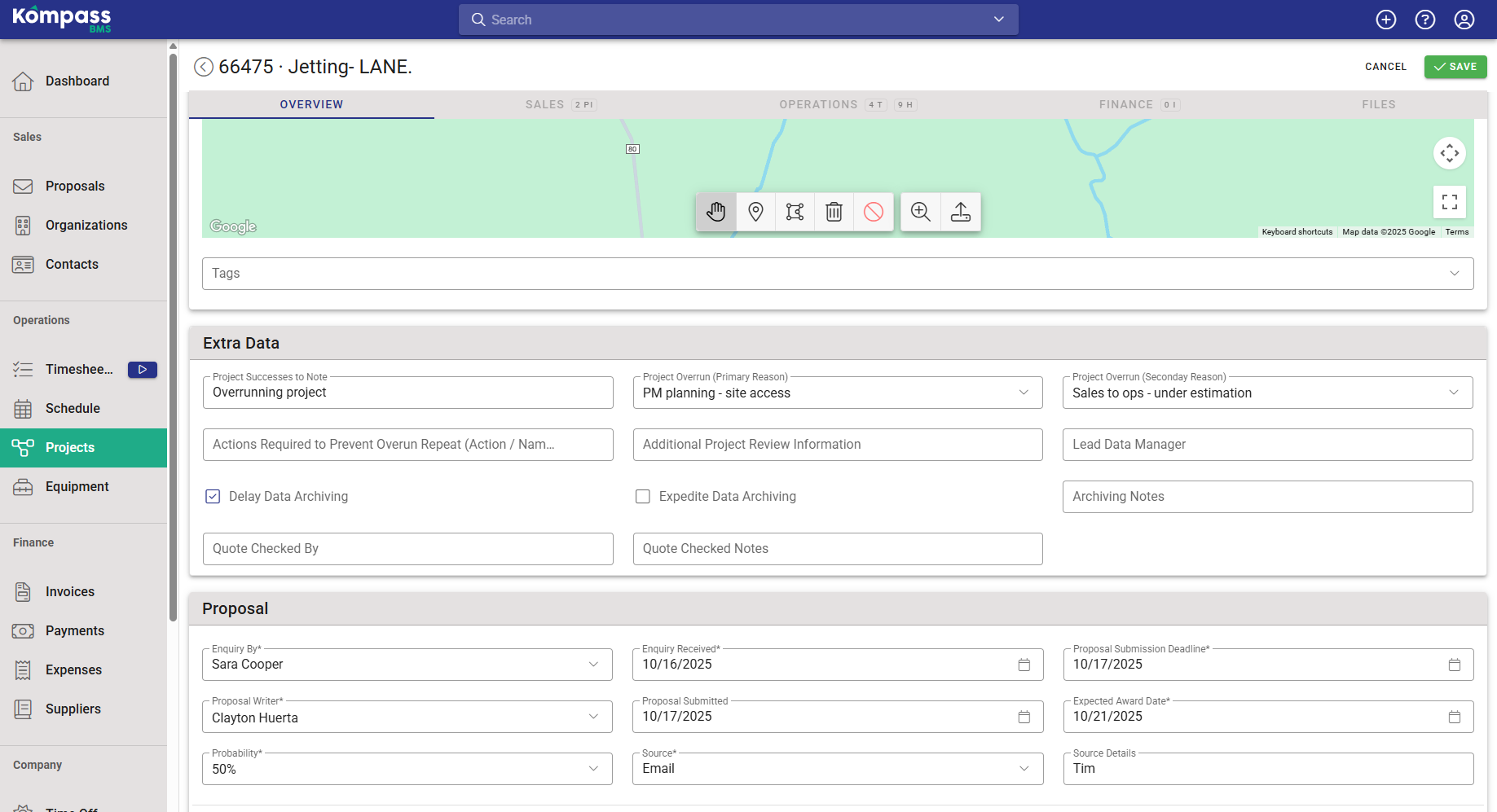

The Additional Information card on a project

User defined fields (UDF) can only be created in Kompass Admin. Normally, your Kompass Champion has access to Kompass Admin.

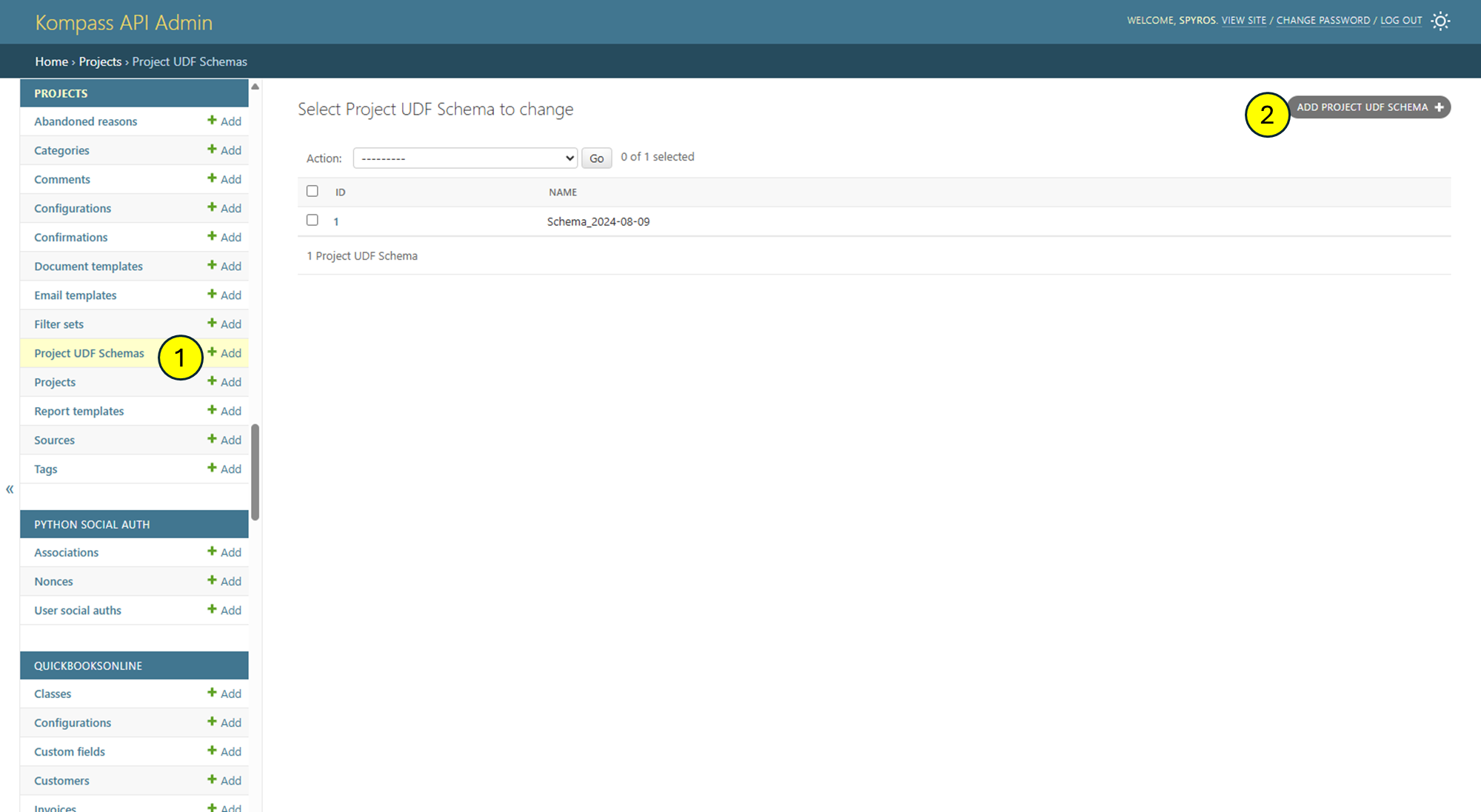

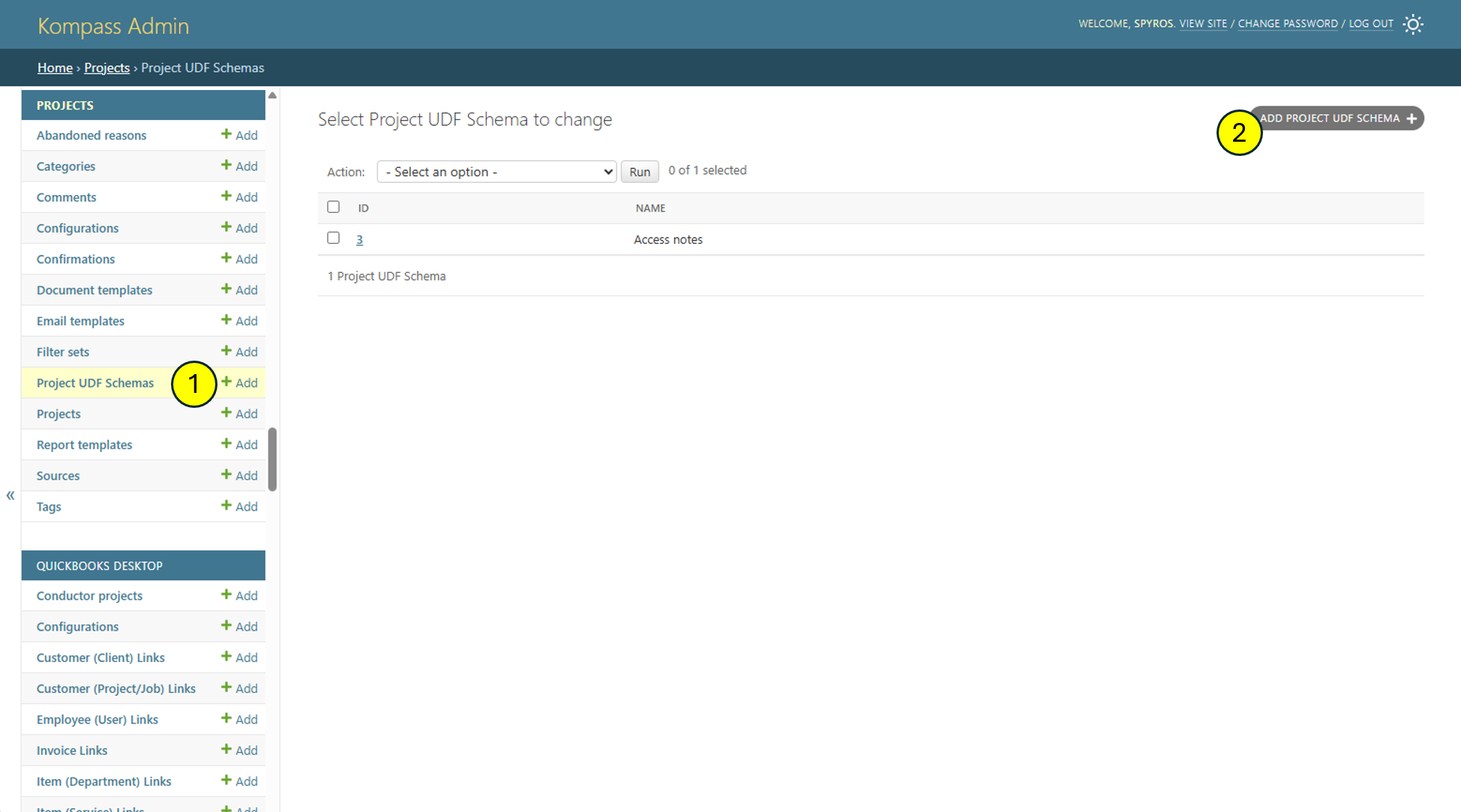

To create your fields, you first need to create a UDF schema for the module. Open the relevant UDF schema list in Kompass Admin (for example Project UDF Schema) and click Add Project UDF Schema.

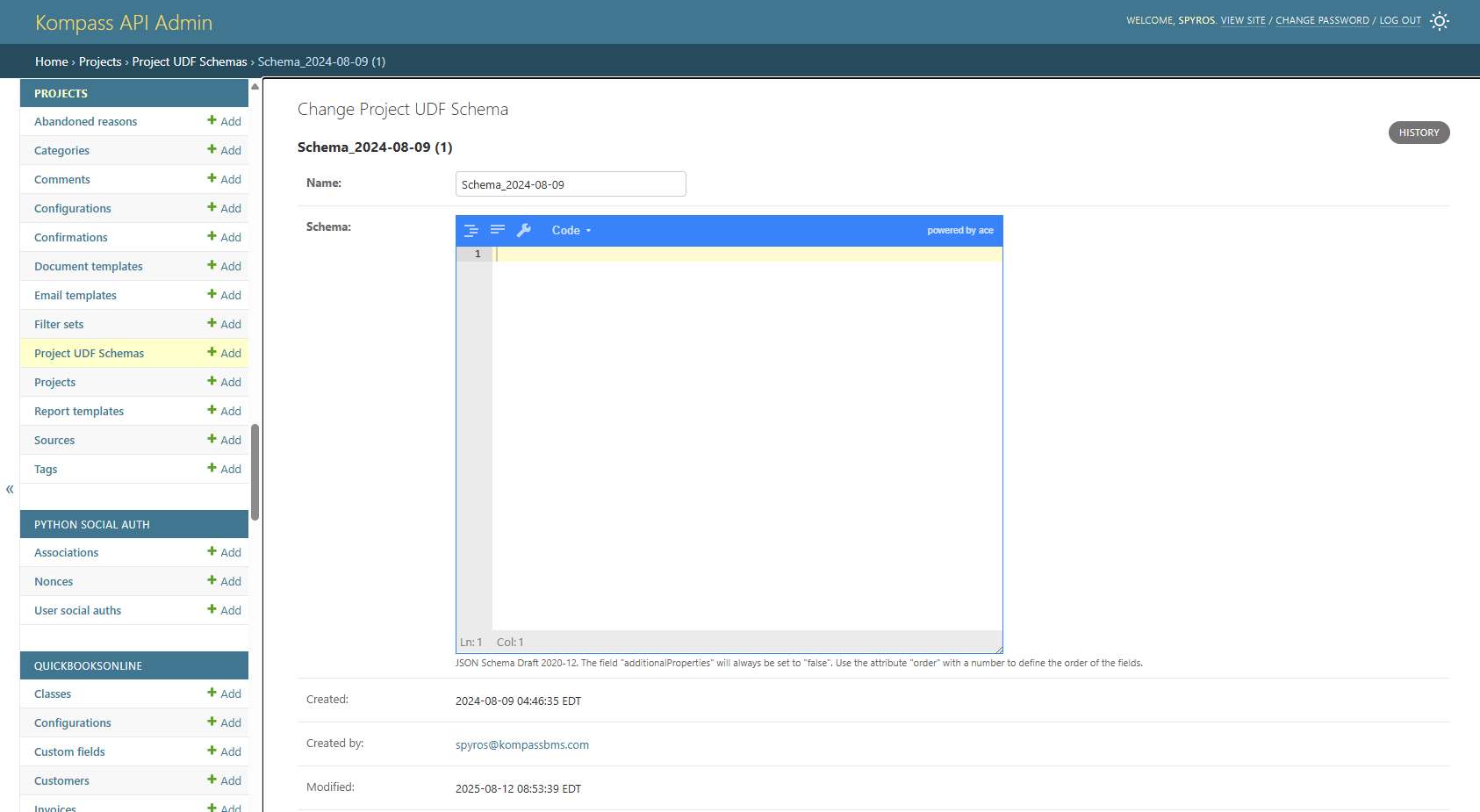

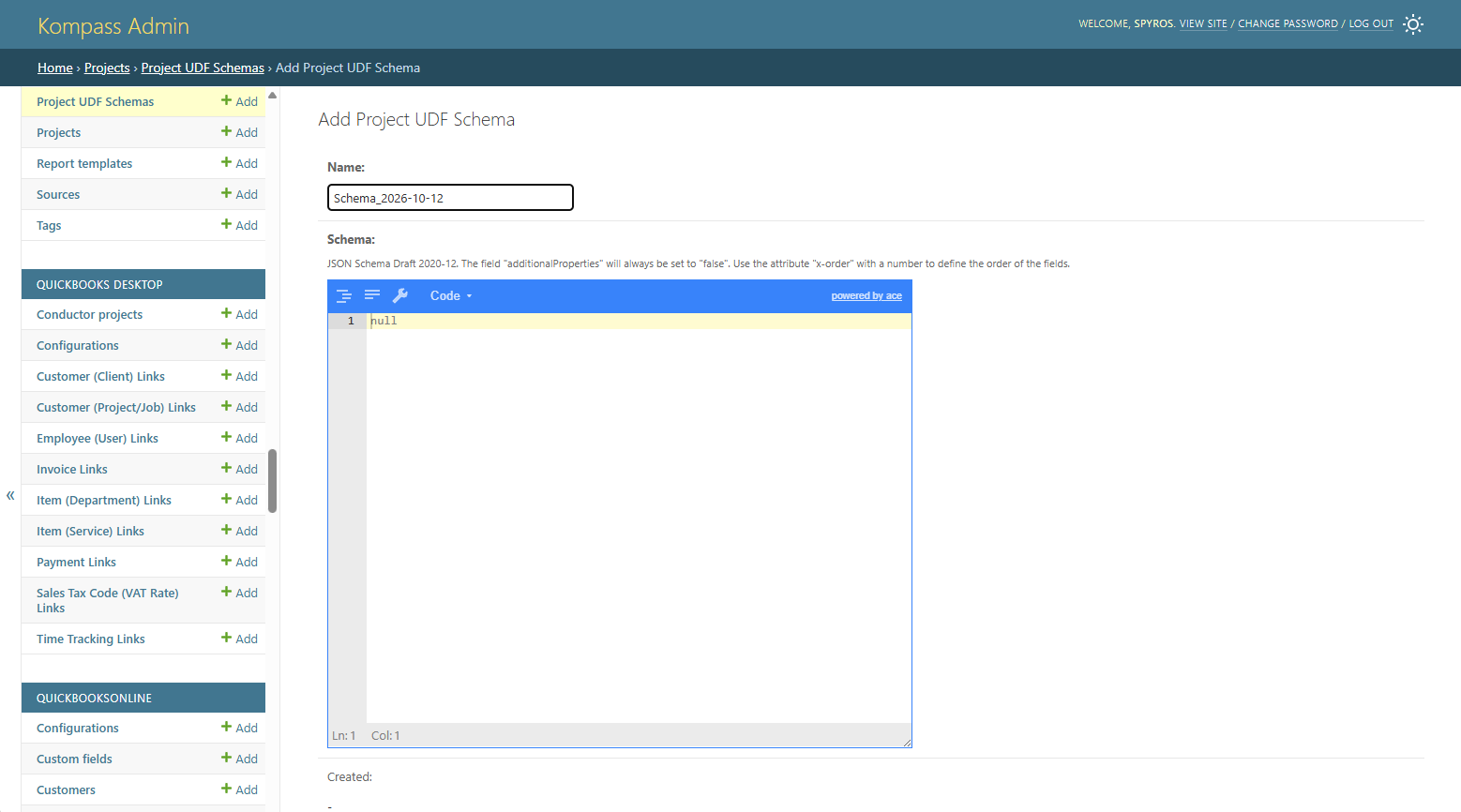

Add a name and then set the schema.

Once you have created your UDF schema, you have to allocate it to your organization. Open the organization in Kompass Admin and select the schema in the module's configuration.

Understanding the Schema Definition

You can see the basic structure of a UDF schema below:


{
  "type": "object",
  "properties": {
    "field_name": {
      "type": [
        "string",
        "null"
      ],
      "label": "Field Label",
      "default": null,
      "x-order": 1
    }
  }
}

A few things to know:


  • Fields are displayed in the order set by x-order  (lowest first). Fields without x-order  are displayed last.
  • A schema only accepts the fields it defines. You can't add values for fields that aren't in it.
  • If you remove a field from a schema, or move a record to a different schema, any values stored for fields that no longer exist are dropped the next time the record is saved. The old values remain in the record's history.



Field Properties

These standard properties can be used on any field (a file field takes only some of them):


Property Description Example
type Field data type (see Field Types) "string" , ["string", "null"]
label Display label shown in the UI "Company Name"
default Default value when the field is empty null , "" , 0 , false
enum List of allowed values (creates a dropdown) ["Active", "Inactive", "Pending"]

There are also custom extensions, all starting with x- :


Property Description Applies to Example
x-order Display order (lowest first) All fields 1 , 2 , 3
x-cols Field width in a 12-column grid, 1–12 (default 4) All fields 3 , 6 , 12
x-section Show the field in a section of the page, or in a card of your own (see Placing fields on the page) All fields "quote", "survey"
x-after The field this field follows: a field of the page, or udf. and the name of one of your own fields All fields "probability", "udf.tender_ref"
x-widget Override the default widget (see Widgets) Dates, entity references, dividers, calculated fields "date" , "client"
x-depends-on Parent field; the field clears when the parent changes Required for contact , quote_item , task "client_id" , "project_id"
x-module Module context for tags Required for the tags  widget "clients" , "projects"
x-multi-line Turns a text field into a text area String fields (required if x-rows  is set) true , false
x-rows Number of text area rows String fields (requires x-multi-line: true ) 3 , 5 , 10
x-decimal-places Fixed decimal precision, 0–10 Number fields 2 , 3 , 0
x-format How a number is displayed, e.g. as currency Number fields "currency"
x-enum-by Narrows a dropdown based on another field's value Fields with enum see below
x-default-from Starts a new record with a value taken from a related record Task, project and Proposal Item schemas "project.deadline"
x-min-from Earliest date or lowest number allowed, taken from a related record or another field Date and number fields on task, project and Proposal Item schemas see below
x-max-from Latest date or highest number allowed, taken from a related record or another field Date and number fields on task, project and Proposal Item schemas "project.deadline"
x-enum-string-partial Lets searches on a dropdown match part of a value String fields with enum true
x-template Template for a calculated value Required for the calculated  widget "{{ quote_item.price_total }}"
x-realtime Recompute a calculated field live while editing (default false ) calculated  widget, Proposal Items only true


Field Width (x-cols )

Fields are laid out on a 12-column grid. By default each field takes 4 columns, so three fields sit on each row. Use x-cols  to change a field's width:


x-cols Result
3 Four fields per row
4  (default) Three fields per row
6 Two fields per row
12 Full width
{
  "type": [
    "number",
    "null"
  ],
  "label": "Target Multiplier",
  "x-cols": 3,
  "default": null
}

x-cols  only affects layout and works on any field. Dividers are always full width.




Placing fields on the page

By default every field shows in the Additional Information card. You can instead show a field inside one of the page's own sections, next to the fields it belongs with, or give a group of fields a card of its own. Placement only changes where a field is shown. Who may see or change it is still set by field permissions (see Restricting who sees a field).

Place a field in a section

Give the field x-section with the key of the section and x-after with the name of the field it should follow. The keys of each page are listed in Section and field keys below. This places a tender reference right after Probability in the Proposal section of a project, and a bid deadline after the tender reference:

{
  "tender_ref": {
    "type": ["string", "null"],
    "label": "Tender reference",
    "x-section": "quote",
    "x-after": "probability"
  },
  "bid_deadline": {
    "type": ["string", "null"],
    "label": "Bid deadline",
    "x-widget": "date",
    "x-after": "udf.tender_ref"
  }
}

Tender reference and Bid deadline in the Proposal section of a project

  • To follow one of your own fields, write udf. and its name, as in "x-after": "udf.tender_ref". The field then shows in the same section as that field, so x-section can be left out. Fields can follow each other in a chain.
  • x-section without x-after puts the field at the end of the section.
  • Several fields that follow the same field are shown in x-order order.
  • A field that follows a field of the section takes one of the section's columns. With x-cols from 7 to 11 it takes two, and with 12 the whole row. A field at the end of a section may instead be laid out as in Additional Information, where x-cols counts out of 12.
  • Divider fields can be placed like any other field.

Add cards of your own

List your cards in x-sections at the top level of the schema, next to properties, and place fields in them with x-section:

{
  "type": "object",
  "x-sections": [
    {"key": "survey", "label": "Survey", "after": "general"}
  ],
  "properties": {
    "survey_type": {
      "type": ["string", "null"],
      "label": "Survey type",
      "enum": [null, "Measured building", "Topographical", "Utilities"],
      "x-section": "survey"
    },
    "access_notes": {
      "type": ["string", "null"],
      "label": "Access notes",
      "x-multi-line": true,
      "x-cols": 8,
      "x-section": "survey"
    }
  }
}

The Additional Information card followed by a Survey card

  • key: lower-case letters, digits and underscores, starting with a letter. It cannot be one of the page's section keys.
  • label: the title of the card.
  • after (optional): the key of the page section the card follows (one of the section keys below, not one of your own cards). Without it, the card follows the page's first section. Cards that follow the same section keep the order of the list.
  • Within a card, fields are laid out as in Additional Information, and x-order orders them.
  • On a project, your cards are also listed in the section links at the top of the Overview.

Move or rename Additional Information

The Additional Information card has the reserved key udf. List it in x-sections to give it another title or move it, for example {"key": "udf", "label": "Site details", "after": "operations"}. Every field without a placement stays in it.

Section and field keys

For each page, the keys of its sections (the first one is the main section) and the fields a field can follow:


Page Section key Fields a field can follow
Projects and Proposals general (General Information) reference, name, category, currency, details, parent, client, billing_client, address, geometries, notes, tags
quote (Proposal) requested_by, requested, quote_deadline, source, source_details, quoted, quote_decision, probability, accepted_by, accepted, confirmation, abandoned_by, abandoned, abandoned_reason, price, gross_margin
operations (Operations) contact, deadline, access, managed_by, managed_notes, surveyed, processed, checked, completed, suspended_by, suspended, suspended_notes
finance (Finance) invoice_contacts, invoiced, closed
Proposal Items general (General Information) reference, name, details, parent, visibility, optional, accepted, accepted_by, closed, notes, tags
financials (Financials) department, service, price_type, tax_category, price, gross_margin
Tasks general (Details) name, type, details, tags, quote_item, start, end, weekend_work, colour, hours, users, closed
Organizations general (General Information) name, sage_reference, title, first_name, last_name, type, category, manager, parent, phone, email, website, primary_contact, billing_contact, phone_office, phone_mobile, opt_out, address, source, source_details, notes, tags, orgs, inactive
Contacts general (Details) client, title, first_name, last_name, position, email, phone_mobile, phone_office, opt_out, address, source, source_details, notes, tags, inactive, is_billing
Invoices general (Details) client, project, type, name, sales_order, details, contacts, sync, date, due, start, end, tax_point, notes, tags, attachments
Payments general (Details) client, allocations, name, batch_reference, date, amount_received, currency_rate, details, notes, tags, sync
Expenses general (General Information) date, description, amount, currency_rate, payment_method, supplier, user, notes, tags, attachments
Equipment general (Details) name, category, owner, department, schedule, serial, identifier, barcode, purchase_order, start, end, calibration, notes, attachments, tags
Time Off general (Details) start, end, days, hours, type, details, manager_notes
Suppliers general (Details) name, reference, nominal_account_default, unanet_code, phone, email, website, address, notes, tags
Employees contact (Contact) first_name, last_name, email, phone_mobile, phone_office, phone_extension
role (Role) position, department, manager, schedule
orgs (Orgs) org, orgs
employment (Employment and access) start, end, groups, external

  • On projects, quoted, surveyed, processed, checked, completed, invoiced and closed are the rows of the standard workflow phases.
  • On the Employees page the four sections share one card, so cards of your own follow that card.

What users see

  • When viewing a record, a field with nothing recorded is left out, and so is a card with nothing to show. In edit mode every field is shown.
  • The Proposal and Finance sections of a project and the Financials section of a proposal item need the permission to view financial data. A user without it still sees such a section when a field they may see is placed in it, with only those fields. To hide the field from them as well, add a field permission rule.
  • A field that follows a field the user may not see takes that field's place.
  • Saving the schema in Kompass Admin checks every section key and field name and names the field when one is wrong. If a field the schema refers to is no longer on the page, the field shows at the end of its section; a section that no longer exists puts it in Additional Information. A field is never hidden by its placement.
  • In the classic design, every field stays in the Extra Data card.



Field Types

1. Text Field

This is a standard string field used for capturing text, such as notes or simple descriptions. You can allow it to be left empty by setting the type  to ["string", "null"] .


  • Example use: A "Plot" description.
  • Code definition:

"plot": {
  "type": "string",
  "label": "Plot",
  "x-order": 1
}

  • Code definition (with null allowed):

"plot": {
  "type": [
    "string",
    "null"
  ],
  "label": "Plot",
  "x-order": 1,
  "default": null
}

2. Checkbox (Yes/No)

This is a boolean field that appears as a simple checkbox. It's ideal for tracking true/false or yes/no information.


  • Example use: A "RAMS Sent" checkbox.
  • Code definition:

"rams": {
  "type": "boolean",
  "label": "RAMS Sent",
  "default": false
}

Note: Checkboxes can't be empty (null ). Always use false  as the default.


3. Dropdown List

This field allows users to select a single option from a predefined list. Use the enum  property to list the available options. Including null  in the enum  list makes the field optional.


  • Example use: A "State Area" field.
  • Code definition:

"section": {
  "enum": [
    "Central",
    "East",
    "North",
    "South",
    "West",
    null
  ],
  "type": [
    "string",
    "null"
  ],
  "label": "State Area",
  "x-order": 2,
  "default": null
}

To make the list change depending on another field, see Dropdowns Filtered by Another Field.


4. Date Field

This field provides a calendar picker. By setting the format  to date , you ensure the input is handled as a date.


  • Example use: An "Archive Date".
  • Code definition:

"archive_date": {
  "type": [
    "string",
    "null"
  ],
  "format": "date",
  "label": "Archive Date",
  "x-order": 3,
  "x-widget": "date",
  "default": null
}

5. Number Field

This field is used for entering numerical data only. You can set a default  value, such as 0 .


  • Example use: An "Acres" field.
  • Code definition:

"acres": {
  "type": [
    "number",
    "null"
  ],
  "label": "Acres",
  "x-order": 4,
  "default": 0
}

6. Decimal Field (fixed precision)

Add x-decimal-places  to a number field to fix how many decimal places it holds.


"unit_price": {
  "type": [
    "number",
    "null"
  ],
  "label": "Unit Price",
  "default": null,
  "x-decimal-places": 2
}

  • x-decimal-places  takes a whole number from 0 to 10.
  • Values are rounded as they're typed and again when saved.
  • Read-only views show the fixed precision, so 1.2  with 2 decimal places shows as 1.20 .
  • x-decimal-places: 0  enforces whole numbers while keeping the number  type.

7. Formatted Number (x-format )

x-decimal-places  controls precision. x-format  controls presentation: thousands separators, currency symbols and percentages. With both set, 1234.5  can show as £1,234.50 .


"agreed_fee": {
  "type": [
    "number",
    "null"
  ],
  "label": "Agreed Fee",
  "default": null,
  "x-decimal-places": 2,
  "x-format": "currency"
}

Shorthand formats. The simplest option is one of three words. They follow your organization's locale, so the currency symbol and separators match your region. In an organization that uses more than one currency, a currency format without its own currency code follows the record's currency instead, including the project currency:


x-format Displays as
"currency" The locale's currency, or the record's currency in a multi-currency organization, e.g. £1,234.50
"decimal" A number with thousands separators, e.g. 1,234.5
"percent" A percentage (see the note below)

Custom formats. For anything else, give x-format  an object of options instead:


// Always euros, regardless of your locale
"x-format": { "style": "currency", "currency": "EUR" }

// Thousands separators, no decimals
"x-format": { "style": "decimal", "maximumFractionDigits": 0 }

// Compact: 1.2m
"x-format": { "style": "decimal", "notation": "compact" }

Supported options: style , currency , currencyDisplay , unit , unitDisplay , notation , compactDisplay , signDisplay , useGrouping , minimumIntegerDigits , minimumFractionDigits , maximumFractionDigits . Any other option is rejected when you save the schema.


Percentages: watch the ×100. "percent"  multiplies the stored value by 100, so it suits a field that stores 0.15  for 15%. If your field stores 15 , use { "style": "unit", "unit": "percent" }  instead, which adds the % sign without multiplying.


Good to know:


  • x-format  only works on number fields.
  • It only changes how the value is displayed. The value is still stored as a plain number, so searching, filtering and calculated fields are unaffected.
  • Formatting shows in read-only views. In edit mode you type the raw number. Calculated fields are always read-only, so they always show formatted.
  • With "currency" , the number of decimals shown comes from the currency (two for GBP), not from x-decimal-places .



Making Fields Required/Optional

Required Fields

To make a field mandatory, list it in the schema's required  array:


{
  "type": "object",
  "properties": {
    "company_name": {
      "type": "string",
      "label": "Company Name",
      "default": ""
    }
  },
  "required": [
    "company_name"
  ]
}

Optional Fields (Nullable)

To allow empty values, use an array type that includes "null" :


{
  "type": [
    "string",
    "null"
  ],
  "label": "Optional Field",
  "default": null
}

Examples:


// Optional string
{
  "type": [
    "string",
    "null"
  ],
  "label": "Middle Name",
  "default": null
}

// Optional integer
{
  "type": [
    "integer",
    "null"
  ],
  "label": "Employee Number",
  "default": null
}

// Optional number
{
  "type": [
    "number",
    "null"
  ],
  "label": "Discount Rate",
  "default": null
}

UI behavior:


  • Fields with "null"  in the type array show a clear button (×) in edit mode
  • Clearing the field sets the value to null
  • Empty text in nullable fields is automatically converted to null



Widgets

Widgets determine how fields are rendered in the UI. Most widgets are selected automatically based on the field type. The x-widget  property is only needed for dates, dividers, calculated fields and entity selectors.


Automatic Widget Selection

Type Condition Rendered as
string Has enum Dropdown
string No enum Text field
integer - Number field
number - Number field
boolean - Checkbox

Text field options:


  • x-multi-line : turns the field into a text area (true /false ). If true  and x-rows  isn't set, it defaults to 1 row.
  • x-rows : number of rows in the text area (requires x-multi-line: true ).

Examples:


// Simple text field
{
  "type": "string",
  "label": "Name"
}

// Text area
{
  "type": "string",
  "label": "Description",
  "x-multi-line": true,
  "x-rows": 5
}

// Dropdown (enum)
{
  "type": "string",
  "label": "Status",
  "enum": [
    "Active",
    "Inactive"
  ]
}

// Number field
{
  "type": "integer",
  "label": "Count"
}

// Checkbox
{
  "type": "boolean",
  "label": "Enabled"
}

Special Widgets (via x-widget)

Entity selectors must be set explicitly and use the integer  type (or array  for tags).


Date Widget

{
  "type": [
    "string",
    "null"
  ],
  "label": "Due Date",
  "x-widget": "date",
  "default": null
}

Divider Widget

Renders a horizontal divider line across the full width. Useful for visually grouping fields.


{
  "type": "null",
  "x-widget": "divider",
  "default": null
}

With a text label:


{
  "type": "null",
  "x-widget": "divider",
  "label": "Personal Information",
  "default": null
}

Note: Dividers don't store data. Use the label  property to display text in the middle of the line.


Client Widget

{
  "type": [
    "integer",
    "null"
  ],
  "label": "Client",
  "x-widget": "client",
  "default": null
}

Contact Widget

Requires: x-depends-on  (the field holding the client ID)


{
  "type": [
    "integer",
    "null"
  ],
  "label": "Contact",
  "x-widget": "contact",
  "x-depends-on": "client_id",
  "default": null
}

Filters contacts by the selected client.


Project Widget

{
  "type": [
    "integer",
    "null"
  ],
  "label": "Project",
  "x-widget": "project",
  "default": null
}

Proposal Item Widget

Requires: x-depends-on  (the field holding the project ID)


{
  "type": [
    "integer",
    "null"
  ],
  "label": "Proposal Item",
  "x-widget": "quote_item",
  "x-depends-on": "project_id",
  "default": null
}

Filters Proposal Items by the selected project.


Task Widget

Requires: x-depends-on  (the field holding the project ID or Proposal Item ID)


{
  "type": [
    "integer",
    "null"
  ],
  "label": "Task",
  "x-widget": "task",
  "x-depends-on": "project_id",
  "default": null
}

Filters tasks by the selected project or Proposal Item. The x-depends-on  value can be either "project_id"  or "quote_item_id" .


Supplier Widget

{
  "type": [
    "integer",
    "null"
  ],
  "label": "Supplier",
  "x-widget": "supplier",
  "default": null
}

User Widget

{
  "type": [
    "integer",
    "null"
  ],
  "label": "Assigned To",
  "x-widget": "user",
  "default": null
}

Tags Widget

{
  "type": [
    "array",
    "null"
  ],
  "label": "Tags",
  "x-widget": "tags",
  "x-module": "clients",
  "default": null
}

Options:


  • x-module : module context for tags (e.g. "clients" , "projects" , "tasks" )

File Widget

A file field holds one or more uploaded files, such as site photos, signed forms or certificates. Use the array  type:


{
  "type": [
    "array",
    "null"
  ],
  "label": "Site photos",
  "x-widget": "file",
  "x-accept": ["image/*", ".pdf"],
  "x-max-files": 5,
  "x-max-size-mb": 10,
  "default": null
}

Options (all optional):


  • x-accept : the file types the field takes, as lower-case extensions (".pdf" ) or file types ("image/png" , or "image/*"  for any image). Without it, any file type is accepted except those Kompass never accepts, such as programs and scripts.
  • x-max-files : how many files the field holds, from 1 to 10. The default is 10.
  • x-max-size-mb : the largest file the field takes, in MB, up to 25. The default is 25.

Rules: a file field cannot be required, cannot have a default other than null  or an empty list, and cannot use enum , x-default-from , x-enum-by , x-min-from , x-max-from  or x-template . It cannot be searched, filtered or shown as a list column.


Adding files: in edit mode, drop files on the field or click Choose files. The field shows the types and sizes it accepts. On a saved record each file uploads straight away; click Save to keep it on the record. On a new record the files wait (Uploads when you save) and upload once the record is created. If an upload fails then, the new record opens in edit mode with the error shown and tries the upload again; save to keep the files. If it fails again, choose the file again.

A file field in edit mode, with two images, a PDF and the area to drop more files


Viewing files: outside edit mode, images show a preview and every file is a link that opens or downloads it.

A file field on a project, with image previews and file links


Removing files: in edit mode, click the cross next to a file and save. A file removed by mistake can be brought back for 90 days by reverting the record's change in its history in Kompass Admin. Files uploaded but never saved to the record are deleted after 30 days.


Recurring tasks: files added while creating a recurring task are added to every task in the series. After that, each task keeps its own files.


Using Entity Fields in Document Templates

Entity selectors (client , contact , project , quote_item , supplier , task , user ) only store the selected record's ID. That's not much use on a printed document, so document templates also receive a udf_obj  alongside udf , with the same field names mapped to the selected record:


{
  "udf": {"qi_managed_by_id": 3},
  "udf_obj": {"qi_managed_by_id": {"id": 3, "name": "Somebody Smith"}}
}

Each record has an id  and a name ; users also have an email . In a template, write:


{{ udf_obj.qi_managed_by_id.name }}

If the field is empty, or the record has been deleted, the value is empty. udf_obj  is available in project and invoice document templates, including the nested project, client, billing client and Proposal Item lists.


Date fields also arrive in document templates as proper dates, so you can format them, for example {{ udf.archive_date.strftime("%d/%m/%Y") }} .


Files and Images in Document Templates

In udf_obj , a file field is a list of its files. Each file has a name , size  (in bytes), mime_type , is_image , and for images width  and height  in pixels. The examples below use a file field with the key site_photos . To list the file names:


{% if udf_obj.site_photos %}{% for file in udf_obj.site_photos %}{{ file.name }} {% endfor %}{% endif %}

In DOCX templates, and in PDF documents made from them, image  places an image file in the document:


{% if udf_obj.site_photos %}{% for file in udf_obj.site_photos %}{{ file.image }}{% endfor %}{% endif %}

By default an image is shown at its natural size, up to 16 cm wide. To set the size, give a width or a height in centimeters; the image keeps its proportions:


{% if udf_obj.site_photos %}{{ udf_obj.site_photos.0.image(width_cm=8) }}{% endif %}
{% if udf_obj.site_photos %}{{ udf_obj.site_photos.0.image(height_cm=5) }}{% endif %}

  • Check that the field has files before using it, as in the examples: a field with no files is empty, and a template that reads it unchecked fails.
  • Files that are not images (a PDF, for example) leave the space empty.
  • Large images are scaled down to keep documents a manageable size, and photos are turned upright.
  • A document can hold up to 200 images from file fields.
  • XLSX templates can list the files but cannot show the images.

For how templates work in each format, see Document template formats: DOCX, PDF, XLSX.




Calculated Fields

A calculated field displays a read-only value that Kompass works out for you from a formula, rather than something a user types in. Use one for figures derived from the record's own data, such as an effective multiplier, a net revenue total or a variance against target, that should always stay in step with the underlying numbers.


Calculated fields are available on Projects and Proposal Items, where the record carries the financial data a formula can draw on.


How they work

A calculated field uses the calculated  widget and carries a template in the x-template  property. When the record is saved, Kompass renders that template against the record's data and stores the result. The user sees the value but can't edit it; anything a user (or an import) tries to submit for a calculated field is ignored.


{
  "effective_multiplier": {
    "type": [
      "number",
      "null"
    ],
    "label": "Effective Multiplier",
    "x-widget": "calculated",
    "x-template": "{{ (quote_item.price_total - quote_item.costs_budget_non_staff) / quote_item.costs_budget_staff }}",
    "x-decimal-places": 2,
    "x-realtime": true,
    "default": null
  }
}

Rules for a calculated field

A calculated field has a few requirements, all enforced when you save the schema:


  • x-widget  must be calculated  and x-template  must be a non-empty, valid template.
  • The type must be number  or string , and it must include "null" , with a default  of null . A calculation can fail (a division by zero, or referenced data that isn't there yet on a draft), and when it does, Kompass stores null  rather than an error.
  • A calculated field cannot be listed in required . The value is computed by the server, never submitted, so a required calculated field would fail every save.
  • Number results are rounded to x-decimal-places  (if set). Text results are used exactly as rendered; a result that is only blank space is stored as null .
  • Add x-format  to display a number result as currency, a percentage and so on.

When they recalculate

  • Proposal Items: whenever the Proposal Item is saved.
  • Projects: whenever the project is saved, and whenever one of its Proposal Items changes, so a project total can never fall behind the items it's built from.

Live preview: x-realtime  (Proposal Items only)

By default, a calculated field recomputes only when the record is saved.


On a Proposal Item, add "x-realtime": true  to have the field recompute live as the user types, before saving, useful for a figure that depends only on fields on the edit form in front of them (price, quantity, and so on).


Leave x-realtime  off for figures that depend on data outside the edit form, such as invoices, payments or other Proposal Items. Those can't be worked out from the unsaved form alone, so they refresh on save.


Not on projects. x-realtime  is rejected on project schemas. A project's figures roll up from its Proposal Items, which aren't part of the project's edit form, so a live preview would show zeros and then jump on save. Project calculated fields compute on save.


Whether realtime or not, every calculated field is recomputed and stored on save.


What you can reference on a Proposal Item

On a Proposal Item, the template can reference a quote_item  object, including:


Figure What it is
price_total The item's total price
costs_budget_total Total budgeted cost for one unit
costs_planned Total budgeted cost for the whole item
costs_budget_staff  / costs_budget_non_staff Staff and non-staff cost for the whole item (together they make costs_planned )
costs_budget_staff_raw  / costs_budget_non_staff_raw The same split for one unit (together they make costs_budget_total )
costs_multiplier The exact factor the per-unit costs are scaled by
hours_budget  / days_budget Budgeted staff hours and days for the whole item
hours_budget_raw  / days_budget_raw The same for one unit
gross_profit , gross_margin Profit and margin
value , invoiced_net , paid_net , work_in_progress Valuation, invoicing and payment figures

It also carries breakdowns of cost and price by staff/non-staff, by cost category and by nominal account (for example price_by_staff , price_by_category , costs_budget_by_category , costs_by_nominal_account ), and a costs  list with one row per cost line.


Note: On a Proposal Item, the parent project  is available but is descriptive only: it carries id , name , details , notes , client , billing_client , contact , requested_by , quoted_by , managed_by  and tags , but deliberately not the project's financial totals. For financial calculations on a Proposal Item, always use the item's own quote_item.*  values.


What you can reference on a Project

On a Project, the template can reference a project  object that does carry rolled-up figures: price_computed  (the project's total price), costs_budget_staff , costs_budget_non_staff , days_budget  and price_total_by_staff . For example, the project version of the effective multiplier is:


{
  "type": [
    "number",
    "null"
  ],
  "label": "Effective Multiplier",
  "x-widget": "calculated",
  "x-template": "{{ (project.price_computed - project.costs_budget_non_staff) / project.costs_budget_staff }}",
  "x-decimal-places": 2,
  "default": null
}

Which Proposal Items count in these totals? Before the project is accepted, every item that isn't optional or hidden from the proposal. Once the project is accepted, only the accepted items. So an optional item nobody bought adds neither cost nor price, and after acceptance the figures narrow to what was actually sold.


The project also has a quote_items  list with each item's own figures. This list is not filtered, so a template that loops over it includes optional and excluded items too.


Referencing other fields

  • Another UDF field: use udf.other_field , so one calculated field can build on another. Kompass automatically works out the right order to calculate them in. (A circular reference, two fields that depend on each other, can't be resolved and computes to null .)
  • The previously-saved values: when editing an existing record, the template can compare the current value against what was saved. saved  mirrors the record's own values as they were before this edit (guard it with {% if saved %} , as it's null  for a brand-new record), and changes  is a list of the fields that differ from the saved version. For example, this gives the price change made in the current edit:

{{ quote_item.price_total - saved.quote_item.price_total }}

Two limits apply to changes : on a project it never includes UDF values (use saved.udf  to compare those), and in the live preview it only covers fields on the edit form.


A note on the staff / non-staff split

Staff costs (costs_budget_staff ) are the budgeted cost of the cost lines flagged as Staff; non-staff costs are the rest. Both cover the whole item, scaled by the same quantity price_total  is priced from, so they can sit either side of a division with price_total  without a unit mismatch. Use the _raw  pair if you want the per-unit figures instead. (See the cost options article for the Staff flag.)


The staff, by-category and by-nominal-account price splits are notional: a Proposal Item has a single price, which Kompass apportions across each dimension in proportion to its share of cost.


Tip: Kompass's figures are exact decimals. To use a fixed decimal number in a formula, convert it with str2dec , for example quote_item.costs_budget_staff - quote_item.days_budget * ('3.35' | str2dec) . A bare 3.35  won't calculate against them.


Limitations

  • Calculated fields are read-only and are not searchable or filterable.
  • A failed calculation (bad data, division by zero, or a formula error) stores null  so the field simply shows blank until the data supports a result.



Field Dependencies

Fields can depend on other fields using x-depends-on . When the parent field changes, dependent fields are automatically cleared.


Example: Client → Contact

{
  "type": "object",
  "properties": {
    "client_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Client",
      "x-widget": "client",
      "x-order": 1,
      "default": null
    },
    "contact_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Contact",
      "x-widget": "contact",
      "x-depends-on": "client_id",
      "x-order": 2,
      "default": null
    }
  }
}

Behavior:


  • The contact selector is filtered by the selected client
  • When the client changes, the contact field is cleared
  • Dependency chains are supported (A → B → C)

Example: Project → Proposal Item → Task

{
  "type": "object",
  "properties": {
    "project_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Project",
      "x-widget": "project",
      "x-order": 1,
      "default": null
    },
    "quote_item_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Proposal Item",
      "x-widget": "quote_item",
      "x-depends-on": "project_id",
      "x-order": 2,
      "default": null
    },
    "task_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Task",
      "x-widget": "task",
      "x-depends-on": "quote_item_id",
      "x-order": 3,
      "default": null
    }
  }
}

x-enum-by  limits a dropdown to the options that make sense for another field's current value. For example, a Sub-category list that changes depending on the project's Category:


"sub_category": {
  "type": [
    "string",
    "null"
  ],
  "label": "Sub-category",
  "enum": [
    null,
    "Extension",
    "Loft conversion",
    "Office fit-out",
    "Retail fit-out"
  ],
  "x-enum-by": {
    "field": "category.id",
    "options": {
      "12": ["Extension", "Loft conversion"],
      "13": ["Office fit-out", "Retail fit-out"]
    }
  },
  "default": null
}

Here, a project in category 12 is offered "Extension" and "Loft conversion"; a project in category 13 is offered the two fit-out options.


How to set it up:


Part What it does
field The field the list depends on. Either another field in the same schema (e.g. "region" ), or, on project schemas only, a project field such as "category.id" , "client.id"  or "managed_by.id" .
options Maps each value of that field to the options offered. Write the keys as text, so category ID 12 is "12" .
enum Still holds the full list. Every option listed under options  must also appear in enum .

How it behaves:


  • When the parent field is empty, or its value has no entry in options , the whole enum  list is offered.
  • While editing, the dropdown follows the parent immediately. Change the category and the sub-category list changes with it; a value the new category doesn't offer is cleared.
  • Saving a value that isn't offered for the parent's current value is rejected.

Check your field name carefully. If field  is misspelled, Kompass can't find the parent, so it quietly offers the full list instead of raising an error. After saving the schema, test it on a record to confirm the list narrows as expected.

Tip: To find a category's ID, open the category in Kompass Admin; the number is in the page address.

Some fields work best when they start from, or stay within, a value held on a related record. For example, a task's Due date can start as the project's deadline and must not fall after it:


"due_date": {
  "type": [
    "string",
    "null"
  ],
  "label": "Due date",
  "x-widget": "date",
  "x-default-from": "project.deadline",
  "x-max-from": "project.deadline",
  "default": null
}

A new task's due date is filled in with the project's deadline. Staff can change it to an earlier date, but a date after the deadline is rejected.


What each setting does:


Setting What it does
x-default-from The starting value for a new record. It is filled in once, when the record is created, and is an ordinary field after that.
x-min-from The earliest date, or lowest number, the field accepts.
x-max-from The latest date, or highest number, the field accepts.

What they can refer to:


Schema Value
Task "project.deadline" (the deadline of the task's project)
Proposal Item "project.deadline" (the deadline of the item's project)
Project "deadline" (the project's own deadline)

x-min-from and x-max-from can also name another field in the same schema, so one field can limit another:


"budget_max": {
  "type": [
    "number",
    "null"
  ],
  "label": "Maximum budget",
  "default": null
},
"budget_agreed": {
  "type": [
    "number",
    "null"
  ],
  "label": "Agreed budget",
  "x-max-from": "budget_max",
  "default": null
}

If you need a value from somewhere else on the record, contact us and we will check whether it can be used.


How x-default-from behaves:


  • It only applies to new records. The form fills the field in as soon as it opens, so you can see the value and change it before saving.
  • On a new task, if you pick a different Proposal Item before touching the field, the value follows the new project. Once you have changed the field yourself, it is left alone.
  • After the record is saved, the field is not updated again. Moving the project deadline later does not change the due date of existing tasks.
  • If the related value is empty, the field starts empty.
  • Records created through the API also get the value if the field is left empty, as do tasks and Proposal Items created by a CSV import and repeating task series. Projects created by a CSV import, and records created by an integration sync such as QuickBooks Online or Microsoft Dynamics 365, start with the field empty.
  • It cannot be combined with a default other than null , and it cannot be used on a required field, a checkbox, a calculated field or a divider.

How x-min-from and x-max-from behave:


  • They work on date fields (the date widget) and on number fields.
  • The limit itself is allowed: a due date on the deadline day is accepted.
  • A value outside the limit is rejected with a message giving the limit. Kompass never changes the value for you.
  • If the field or the limit is empty, nothing is checked.
  • The check runs when a record is created and whenever the field itself is changed. If the project deadline is later moved earlier, existing tasks can still be saved for other changes; their due date is only checked again when someone edits it.

Check the value you refer to carefully. If it is misspelled, Kompass can't find it, so the field simply starts empty and no limit applies; there is no error. After saving the schema, create a test record to confirm the field fills in and the limit works.



Complete Example

{
  "type": "object",
  "properties": {
    "status": {
      "type": "string",
      "label": "Status",
      "enum": [
        "New",
        "In Progress",
        "Completed",
        "On Hold"
      ],
      "default": "New",
      "x-order": 1
    },
    "client_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Related Client",
      "x-widget": "client",
      "x-order": 2,
      "default": null
    },
    "contact_id": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Primary Contact",
      "x-widget": "contact",
      "x-depends-on": "client_id",
      "x-order": 3,
      "default": null
    },
    "priority": {
      "type": "integer",
      "label": "Priority Level",
      "default": 3,
      "x-order": 4
    },
    "budget": {
      "type": [
        "number",
        "null"
      ],
      "label": "Budget",
      "default": null,
      "x-decimal-places": 2,
      "x-format": "currency",
      "x-order": 5
    },
    "due_date": {
      "type": [
        "string",
        "null"
      ],
      "label": "Due Date",
      "x-widget": "date",
      "x-order": 6,
      "default": null
    },
    "is_billable": {
      "type": "boolean",
      "label": "Billable",
      "default": true,
      "x-order": 7
    },
    "notes": {
      "type": [
        "string",
        "null"
      ],
      "label": "Notes",
      "x-multi-line": true,
      "x-rows": 5,
      "x-cols": 12,
      "x-order": 8,
      "default": null
    },
    "assigned_to": {
      "type": [
        "integer",
        "null"
      ],
      "label": "Assigned To",
      "x-widget": "user",
      "x-order": 9,
      "default": null
    },
    "tags": {
      "type": [
        "array",
        "null"
      ],
      "label": "Tags",
      "x-widget": "tags",
      "x-module": "projects",
      "x-order": 10,
      "default": null
    }
  },
  "required": [
    "status",
    "priority",
    "is_billable"
  ]
}



Validation

Validation on save

All UDF data is checked against the schema when it's saved:


  • Type checking (string, integer, number, boolean)
  • Required fields
  • Dropdown values, including x-enum-by  restrictions
  • Date and number limits (x-min-from , x-max-from )
  • Field dependencies

Validation while editing

The form also checks values as you type:


  • Required fields show an error if empty
  • Number fields only accept numbers
  • Integer fields only accept whole numbers
  • Decimal fields (x-decimal-places ) round to the set precision
  • Dates and numbers outside their x-min-from / x-max-from limit show an error
  • Nullable fields can be cleared

Validation Errors

Validation errors are returned in this format:


{
  "udf": {
    "field_name": "Error message"
  }
}



Searching by UDF

UDF fields can be searched from the power search box on Projects, Proposal Items, Invoices and Contacts, using the keyword udf-  followed by the field name, with underscores replaced by hyphens. For example, a field called risk_level  is searched as udf-risk-level .


Tip: Hover over a UDF field to see its exact search keyword.


  • Text fields match part of the text.
  • Dropdowns match the exact value. Add "x-enum-string-partial": true  to a dropdown to let searches match part of a value instead, so udf-status:prog  finds "In Progress".
  • Number and date fields search by range.

Dividers, calculated fields, entity selectors, tags and file fields can't be searched this way.


For the full search syntax, see The Power Search Box.


Power search covers every other field of the schema. To have the plain search box of a list look in a field as well, flag the field with x-searchable (see Showing fields on list pages).




Showing fields on list pages

Three optional flags on a field decide how it takes part in the list pages of its module: whether the search box looks in it, whether it appears in the filter form, and whether it can be shown as a column. They are off unless you set them to true.


Flag What it does Allowed on
x-searchable The list's search box also looks in this field. Text fields
x-filterable The field appears in the list's filter form and can be saved in a filter set. Every field except dividers, calculated fields and file fields
x-list-column The field can be added as a column from the list's column picker, and the list can be sorted by it. Text, number and yes/no fields

The flags work on the lists of every module that has user-defined fields: Organizations, Contacts, Projects (including the Sales tab of a project), Proposal Items, Invoices, Payments, Expenses, Equipment, Suppliers, Tasks, Time Off and Employees.


Note: the flags are read from the organization's default schema for the module, the one set in the module's configuration in Kompass Admin. A record that uses a different schema is matched on the fields it shares with the default one.


A searchable field is matched by the same rules as the list's other searched fields: every word must match, text in double quotes is one phrase, and a word starting with - leaves out the records that contain it. The Time Off list has no search box, so the flag has no effect there.


Filters

Each filterable field gets a control in the list's filter form, suited to its type:

  • Text fields match part of the text, with suggestions taken from the records you can see.
  • Dropdowns offer a checkbox per option and match any of the checked ones.
  • Yes/no fields offer any, yes or no.
  • Number and date fields filter by a from and to range.
  • Fields that select a record (client, contact, project, task, supplier or user) use the usual picker and match that record exactly.

Proposal Item selector fields are not offered in the filter form, because picking a proposal item needs a project first.


Columns

A list column field is added from the Columns control below the table. It is hidden until a user switches it on, and each user's choice is remembered. Numbers sort numerically and keep their number format, dates show in your date format, and yes/no fields show Yes or No.


Two lists show these columns without sorting by them: the Time Off list, and the Sales tab of a project.


The Employees list shows cards rather than a table, so its list column fields appear on each employee's card, with the field's label, whenever the employee has a value.


Example

{
  "po_number": {
    "type": ["string", "null"],
    "label": "PO Number",
    "default": null,
    "x-searchable": true,
    "x-filterable": true,
    "x-list-column": true
  }
}

Fields a user may not read (see below) are left out of the search, the filter form, the columns and the suggestions.




Restricting who sees a field

Individual user-defined fields can be hidden from, or made read-only for, chosen permission groups. This is set up separately from the schema, as a field permission rule naming the field as Model.udf.field_name  (for example Project.udf.effective_multiplier ). A user who may not read the field does not see an empty box: the field is left out of the record and out of the form. Hiding a divider field hides only the divider itself; the fields beneath it stay visible unless you restrict each of them separately. See Field permissions for how to write the rules. Placing a field in a section of the page (see Placing fields on the page) does not change who may see it.




Best Practices

  1. Always specify x-order : ensures consistent field ordering
  2. Use null for optional fields: include "null"  in the type array
  3. Set sensible defaults: provide default values for all fields
  4. Use dependencies wisely: create logical field relationships
  5. Keep labels concise: use clear, short labels (2–4 words)
  6. Give long text room: use x-cols: 12  with x-multi-line  for notes
  7. Test validation: check required/optional field behavior, and that x-enum-by  lists narrow as expected
  8. Consider field width: fields show three per row by default; use x-cols  to change it



Common Patterns

Optional Reference Field

{
  "type": [
    "integer",
    "null"
  ],
  "label": "Related Entity",
  "x-widget": "client",
  "default": null
}

Required Dropdown

{
  "type": "string",
  "label": "Category",
  "enum": [
    "A",
    "B",
    "C"
  ],
  "default": "A"
}

Dependent Selectors

{
  "parent_id": {
    "type": [
      "integer",
      "null"
    ],
    "x-widget": "client",
    "x-order": 1
  },
  "child_id": {
    "type": [
      "integer",
      "null"
    ],
    "x-widget": "contact",
    "x-depends-on": "parent_id",
    "x-order": 2
  }
}

Large Text Field

{
  "type": [
    "string",
    "null"
  ],
  "label": "Description",
  "x-multi-line": true,
  "x-rows": 8,
  "x-cols": 12,
  "default": null
}

Currency Amount

{
  "type": [
    "number",
    "null"
  ],
  "label": "Agreed Fee",
  "x-decimal-places": 2,
  "x-format": "currency",
  "default": null
}
Did this answer your question? Thanks for the feedback There was a problem submitting your feedback. Please try again later.

Still need help? Contact Us Contact Us
